Cutting Yale z12b on the Mustang setting?

[cobblers.keys]

Hi all,

Quick Question please? When cutting a Yale z12b on the Mustang does the left and right dimple cuts have to be on the same tilt position as the Yale magnum?

Thanks again

[kirkybob]

I use a multicode but use same angles as the other yale platinum. but I have heard of people cutting all this type  of yale ( dimple Laser) at 0 degrees on a mustang.

Bob

[grahamparker]

1 hour ago, kirkybob said:

I use a multicode but use same angles as the other yale platinum. but I have heard of people cutting all this type  of yale ( dimple Laser) at 0 degrees on a mustang.

Bob

Won't get away with 0 degrees on the 3 star cylinders. Better built than the previous efforts from Mustang.

[cobblers.keys]

So what is the answer to my question Graham?

Thanks

[tommy]

Yes, tilt the same way as the magnum and superior on your Mustang

[grahamparker]

20 hours ago, cobblers.keys said:

So what is the answer to my question Graham?

Thanks

You must put the angle of cuts to 14' same as for Yale platinum these and magnum.

[Technical Tony Davenport]

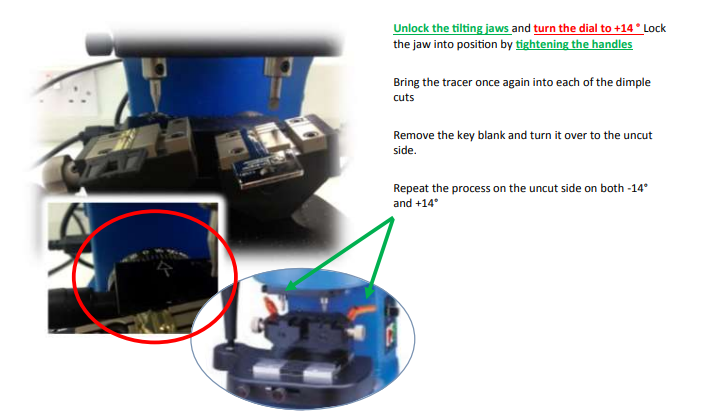

agree plus and Minus 14o as guide below .



Regards Tony
